How Do You Build Profitable Custom LED Rope Light Signs and Letters?

You lose commercial clients because your custom signs look cheap. Standard lights show dark spots and break easily. You need professional materials to build premium glowing letters.

To build custom LED signs, use high-density COB flexible strips with a bending radius over 15mm. Choose 12V or 24V double-sided copper boards for stable power. Cut strictly on factory marks, and seal ends with silicone to ensure durable, spotless commercial marquee letters.

I am Jeremy Hou. I own Rhstriplighting in China. I talk to Tom in the United States every week. Tom supplies contractors who build retail signage. His contractors struggled with failing signs. The lights died fast. The letters showed ugly dark spots. I taught Tom how to select perfect materials for acrylic marquee ambient lights. Here is how you can build reliable, high-profit custom signs.

Why Do Standard LED Strips Fail in Custom Marquee Signs?

Your client turns on the new sign. Half the letters look dim. The standard strips create ugly dots. The client refuses to pay the final bill.

Standard LED strips use spaced-out chips that create visible dot reflections on acrylic signs. They lack the structural flexibility needed for letter shapes. You must use COB high-density flexible strip lights to achieve smooth, borderless illumination.

Standard strips are terrible for retail signage display design. They use older manufacturing technology. This older method puts large spaces between each light chip. When you put an old strip inside an acrylic letter, the clear plastic glass reflects every single dot. The sign looks like a cheap string of holiday lights. Commercial clients hate this dotted look entirely. They pay for a premium product. They want a smooth, solid line of bright color.

We solve this exact problem with COB high-density flexible strip light. COB technology packs hundreds of tiny chips into one continuous yellow line. Our COB strips have no dark areas at all. The light transmittance is extremely high. The luminous efficiency is excellent for commercial jobs. When you install a COB strip inside an acrylic marquee ambient light, the letter fills completely with uniform bright light. There is no sense of LED bead particles anywhere in the sign.

Standard strips also use very stiff base materials. They resist shaping. When contractors force standard strips into tight acrylic letters, the internal circuits tear apart. COB strips use advanced flexible materials. They adapt quickly to complex letter shapes. You can trace an "S" or an "O" shape easily.

Visual Quality Comparison

Strip Type	Light Output	Spotting Effect	Shape Ability
Standard Strip	Uneven brightness1	Heavy visible dots	Stiff and fragile
High-Density COB2	Perfectly smooth	Zero dark areas	Highly flexible

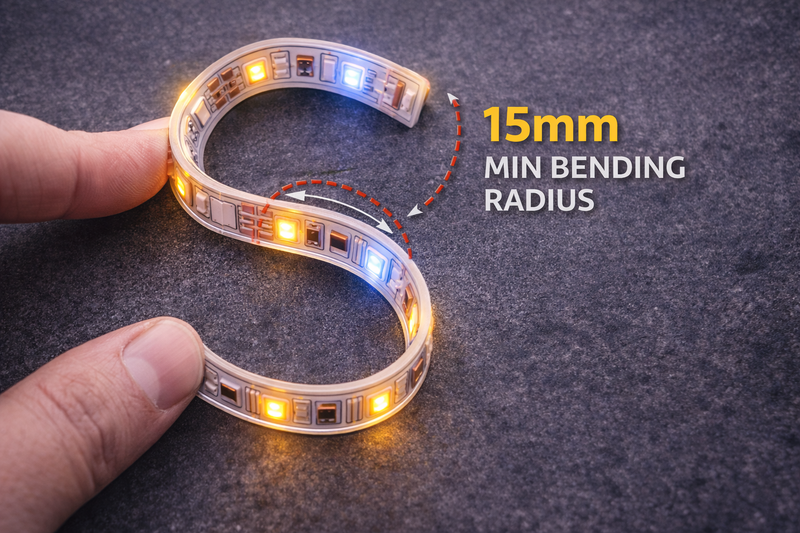

How Does the 15mm Bending Rule Protect Your Signage Profits?

You bend the strip hard to make a sharp letter corner. The light snaps. You ruin an entire roll of expensive material instantly.

You must respect the physical limits of the circuit board. Always maintain a bending diameter of R > 15mm. Never fold the strip in half, and never bend it horizontally, to permanently protect the electrical connections.

Custom signs require intense shape making. Contractors build complex brand logos every day. They must trace sharp retail fonts. Workers try to force the flexible strip into sharp 90-degree corners. This is the biggest mistake in sign making. The flexible light strip is forgiving. But it is not magic. It contains a real metal circuit board inside the plastic cover.

We print a strict rule on every technical guide we ship. The bending diameter must be R > 15mm. If you bend the strip tighter than 15mm, you stretch the outer silicone housing too far. You also crush the inner metal trace. You must never fold it in half. A hard fold acts exactly like a pair of scissors. It cuts the electrical path completely. The light dies from that point forward.

You must never bend it horizontally. The base board is extremely flat. It only bends up and down freely. If you bend it sideways to follow a flat wall letter, the metal breaks immediately. You must plan your letter shapes with gentle curves. Use small jumper wires to connect sharp angles. Good contractors use heat-shrink tubing and small flexible wires to bypass sharp 90-degree corners in the acrylic housing.

Bending Guidelines for Signs

Action	Allowed limit	Physical Result
Vertical Curve3	R > 15mm	Safe continuous light
Horizontal Bend4	Not Allowed	Breaks the flat circuit board
Hard Fold	Not Allowed	Snaps copper metal instantly

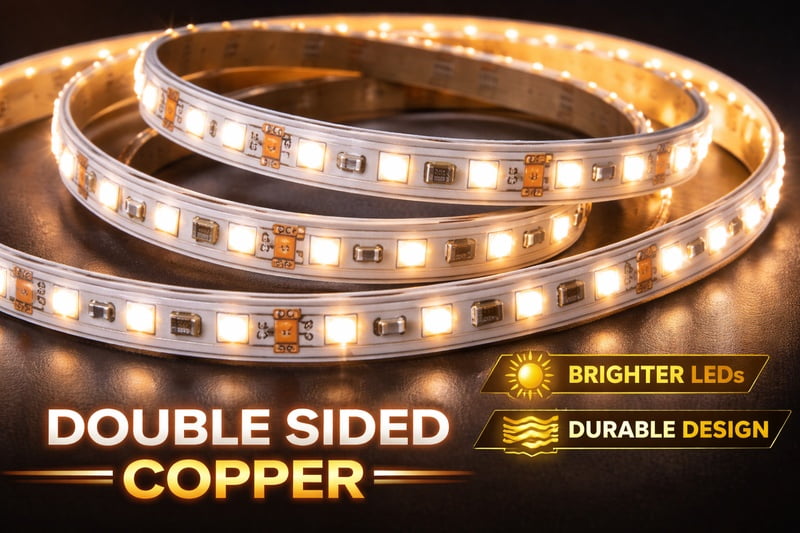

Why Is Double Sided Copper Essential for Commercial Signage?

Your sign runs twenty four hours a day. The cheap single-layer copper heats up. The light chips burn out. The sign goes black.

Commercial signs require FPC double sides copper to manage continuous heat output. Double-sided copper acts as an efficient thermal highway, transferring heat away from the chips and greatly extending the lifespan of the sign.

Commercial signage operates under immense stress. Retail stores leave their outdoor illuminated signs running all day and all night. Standard single-sided copper strips trap heat directly under the light chips. Inside a closed acrylic sign box, this trapped hot air destroys the delicate internal coating. The chips change color. A bright white sign turns into a dirty yellow sign in just three months.

We manufacture our sign lights with FPC double sides copper. We use pure thick copper boards. This double copper design creates a massive heat sink. The heat moves away from the front light chips very fast. It travels to the back of the board safely. The copper spreads the heat evenly across the whole length of the 5000mm strip. This keeps the entire system very cool.

You must choose double copper for any serious advertisement project. Tom only buys double copper products from us for his United States clients. It guarantees stable product quality. The fast heat dissipation means the chips consume less power. They generate more safe brightness. The sign lasts for over 36,000 hours without any dimming issues. FPC double sides copper defends your brand reputation completely.

Copper Board Structure

Copper Type	Heat Dissipation5	Long-Term Color	Lifespan6
Single Sided	Very poor	Turns yellow fast	Dies in months
Double Sided FPC	Excellent	Stays perfectly white	Over 36,000 hours

What Makes RGB Magic Color Chasing Lights Perfect for Outdoor Signs?

Your client wants a sign that grabs massive attention. Boring static white signs fail to stop walking traffic. You lose the competitive edge.

RGB magic color chasing lights create dynamic moving visual effects for outdoor billboard decoration. They use precise low voltages to flash rich colors rapidly, pulling massive attention to the commercial display.

Retail environments are highly competitive today. A simple static sign does not capture the eyes of busy shoppers anymore. You need dynamic movement. We sell RGB magic color chasing lights specifically for this problem. These lights do not just change simple colors. They push colors down the physical line sequentially. It looks like the light is running around the edge of the store window fast.

Contractors use these magic color chasing strips for large billboard decoration and storefront outlines. They are incredibly bright. We offer them in 10mm and 12mm board widths. You can program them to flash smoothly. You can make them chase each other. You can make them fade slowly. They operate on safe low voltages like 5VDC, 12VDC, or 24VDC. The low voltage ensures that even with constant rapid flashing, the board remains cool.

For outdoor illuminated signs, you must order these RGB strips with IP67 or IP68 waterproof ratings. The digital chasing controller sits safely inside the dry shop. The pure silicone tube protects the moving lights from rain and snow out on the wet street. Tom loves these chasing lights. His contractors sell them for double the price of standard white signs. They build massive business profits.

Dynamic Signage Lighting

Feature	Strip Component	Business Benefit
Moving effects7	RGB and IC controller	Captures immediate attention
Heat safety	12VDC or 24VDC	Reliable constant flashing
Weather defense8	IP67 pure silicone tube	Survives outdoor billboard rain

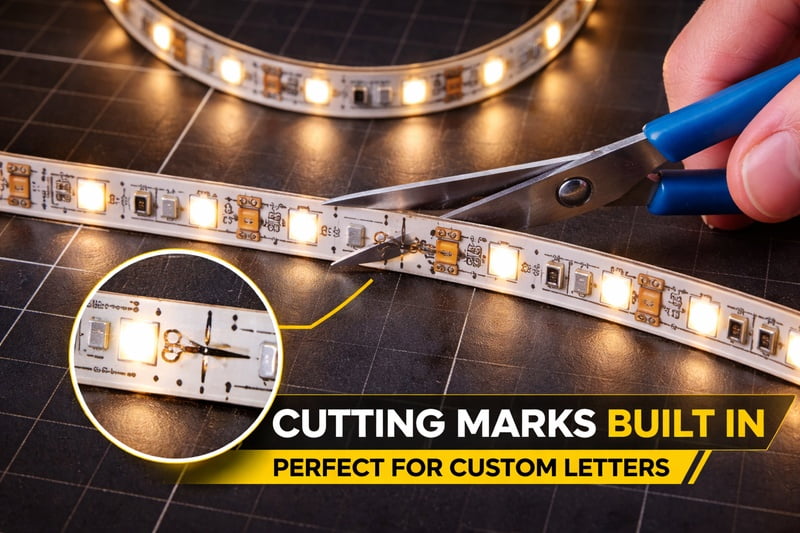

How Do Factory Cutting Marks Prevent Dark Spots in LED Letters?

You cut the strip to fit a small custom letter. You guess the cut location. You destroy the circuit. The letter end is totally black.

You must cut the strip strictly on the printed factory scissor marks. For a 24VDC strip, you must cut exactly at the 50mm mark to keep the entire letter fully illuminated without dangerous short circuits.

Custom letters require very precise lengths of light. An "A" needs different lengths than an "E". Contractors must cut the master roll into dozens of small pieces. If an installer ignores the factory printed lines, they cause massive direct damage. Cutting between the specific markings destroys the internal electrical sequence. The entire cut section will go totally black immediately. It leaves an ugly dark spot at the edge of the sign letter.

We engineer specific cutting lengths for every single voltage level. For our common 24VDC COB strips, the cutting length is strictly 50mm. You must use sharp scissor blades to cut cleanly on the visible copper line. A clean cut ensures you have enough copper material left. This extra material allows you to solder the new connection wires securely. A bad cut leaves no copper for the solder to grab.

Once you cut the strip, you expose the raw FPC board to the wet air. If the sign goes outdoors, you must seal this exact cut point immediately. You must insert the cut end into an IP67 hollow silicone tube end cap. You fill the cap with generous amounts of neutral silicone glue. This preserves the perfect length of the custom strip. It blocks atmospheric moisture from destroying your beautiful lettering.

LED Cutting Rules

Voltage Type	Factory Cut Mark	Cutting Tool	Result
12VDC	25mm distance	Sharp scissors	Perfect letter fit edges
24VDC	50mm distance	Sharp scissors	Retains strong copper pads
Any Voltage	Off the marked line	Dull knife	Causes permanent dark spots

Conclusion

Building profitable custom LED signs requires FPC double sided copper and high-density COB strips. Cut exactly on the factory marks, respect the 15mm bending rule, and grow your sales.

---
