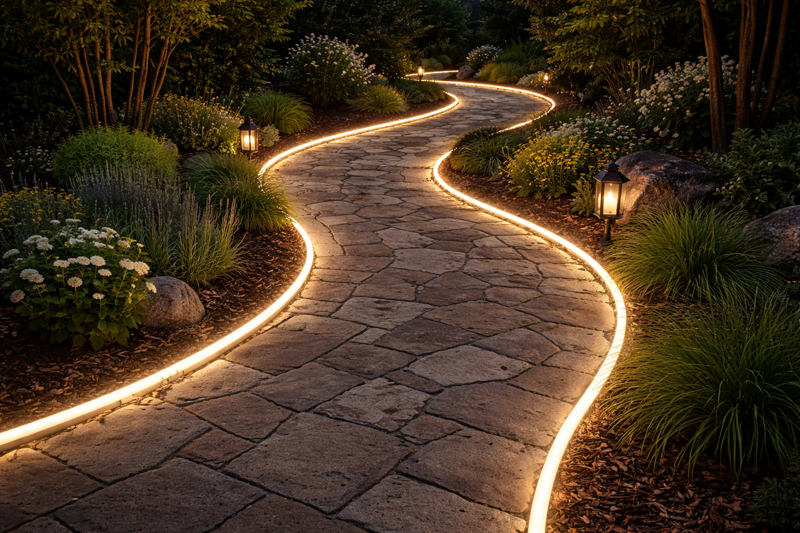

Landscape LED Rope Lighting: Pathways and Garden Illumination

You spend thousands on landscaping, manicuring every shrub and laying perfect stone pathways, yet at night, your garden turns into a pitch-black maze. Poorly designed landscape lighting not only hides your investment but can make walking dangerous.

To truly elevate a garden project, you need continuous, dot-free COB LED rope lighting. Unlike cheap solar stakes, 24V or 48V COB strips provide uniform illumination that clearly defines pathways without harsh glare, and when paired with IP68 Solid Extrusion technology, they withstand irrigation sprinklers and heavy rain for years.

In my years manufacturing for US distributors, I have seen too many landscape projects fail because the installer used indoor-grade materials outside. They rot, they dim, and they die. As a professional, you cannot afford to replace lighting every spring. Let’s discuss the specific industrial-grade specs you need to source for permanent landscape illumination.

Why Is IP68 Mandatory for Ground-Level Lighting?

Garden lighting lives in the harshest environment: right on the ground. It faces mud, snow, fertilizer, and daily water from sprinkler systems.

You must never use IP65 or IP67 for pathway lighting near the ground; you strictly need IP68 Solid Extrusion. This technology completely encases the LED strip in silicone, allowing it to function perfectly even if the garden bed floods or the lights are submerged.

The Underground Reality

When sourcing for landscape jobs, you need to understand how the waterproofing is built. In the US market, I see a lot of "outdoor" rope lights that are just a hollow tube (IP67). These work fine for a roofline, but on the ground, condensation kills them.

Our Factory Standard for Landscapes:

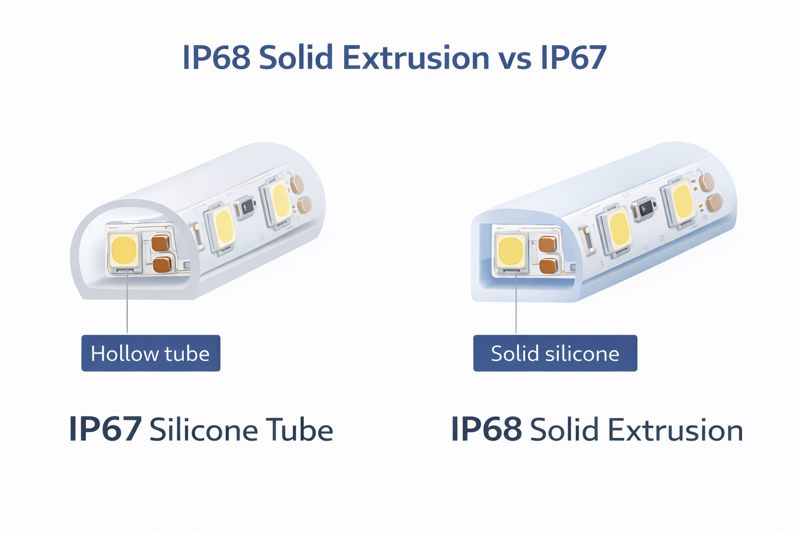

We define IP68¹ specifically as "waterproofing by solid extrusion". This means there is no air inside the casing. The silicone potting compound fills every gap around the PCB. This is critical because:

1. Thermal Expansion: Soil temperatures change rapidly. Air pockets in hollow tubes expand and contract, sucking in moisture. Solid extrusion eliminates this.
2. Chemical Resistance: Fertilizer and weed killer can corrode cheap PVC. Our silicone withstands these chemicals.

Comparison for Sourcing:

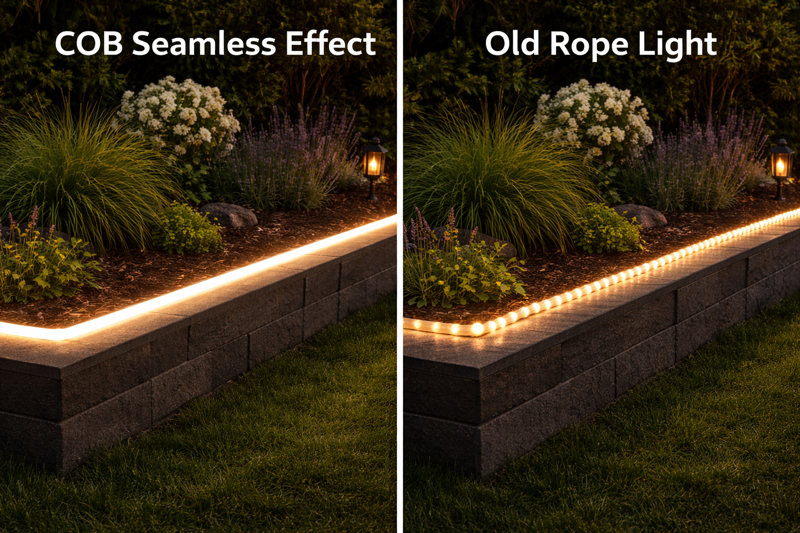

How Do You Achieve a "Neon" Look Without Dots?

Old-fashioned rope lights look like Christmas decorations—spots of light that look cheap. Modern landscape architecture demands a seamless, high-end line of light.

Abandon standard SMD strips and source High-Density COB (Chip on Board) rope lights. With densities up to 480 LEDs/m, these offer a continuous "no dark area" uniform glow that looks like neon but is far more durable and energy-efficient.

The Aesthetic of Continuity

In landscape design, the light fixture itself is often hidden, but for pathways, the light source is the guide. If you see individual dots, it distracts the eye.

COB Technology Advantage:
Our manufacturing process mounts chips directly to the board (Chip on Board).

• Density: We produce these with 320 to 480 LEDs per meter³. This density makes it impossible to see individual beads, solving the "sense of LED bead particles" problem.
• Flexibility on the Path: Garden paths curve. COB strips are flexible, but you must be careful. Our technical data warns: "Bending diameter R > 15mm" and "Do not fold in half". As long as you follow the natural curve of the path and don’t crimp it, the light remains flawless.

Visual Impact Table:

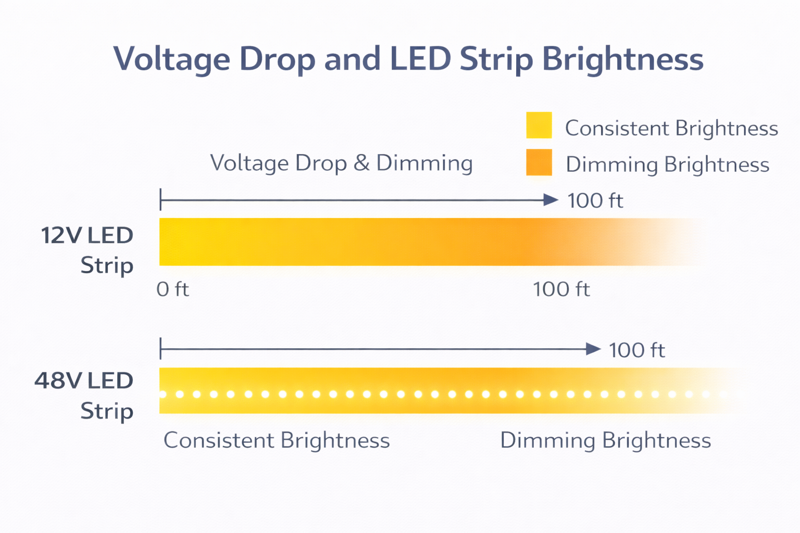

24V or 48V: Which is Best for Long Pathways?

Garden pathways are often long. If you use 12V, the lights near the house will be bright, and the lights at the garden gate will be dim.

For landscape projects involving long 50-foot or 100-foot runs, standardize on 24V or 48V systems. This minimizes voltage drop, ensuring the beginning and end of your pathway have exactly the same brightness without needing expensive re-wiring.

Solving the Voltage Drop

As a distributor or contractor, labor is your biggest cost. Running extra 120V power lines to the back of a garden just to inject power into a 12V strip is a waste of money.

Select the Right Voltage:

1. 24V Standard: This is our most common export for residential decks and medium gardens. It handles runs of 5-10 meters easily. Our 24V COB strips allow for a cutting unit of 50mm, giving you precision at corners.
2. 48V Long Run: For large estates or commercial parks, we manufacture 48V Constant Current⁵ strips. These are designed for "Extra long" projects. You can run 20+ meters on a single feed, reducing your power supply count drastically.

CRI in the Garden:
Do not ignore color quality outdoors. Green grass and red flowers look dull under low CRI light. We stick to Ra90 (CRI 90+⁶) for our landscape lines. This makes the vegetation look lush and vibrant at night, rather than washed out.

Are You Customizing for Unique Hardscapes?

Every garden is different. Sometimes you need a specific color temperature to match existing floodlights, or RGB options for a holiday mode.

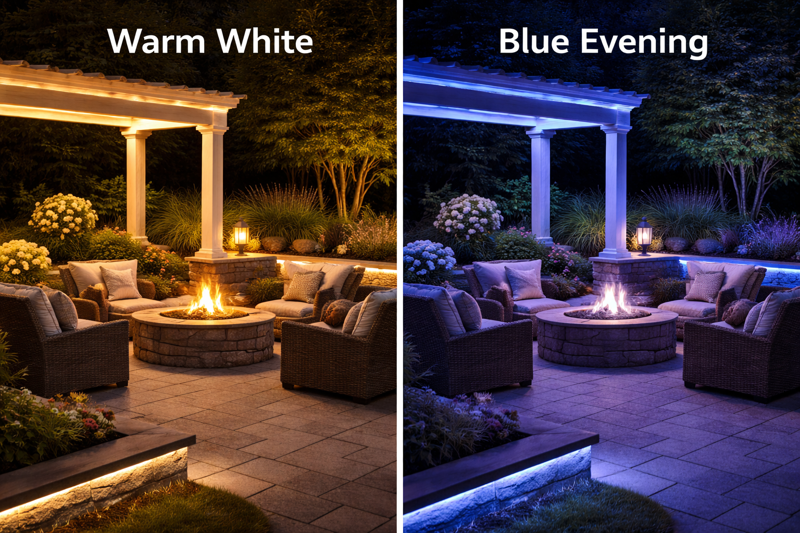

Don’t limit yourself to static white. Utilize RGBW or dual-color COB strips to offer clients adjustable ambiance—warm white for daily elegance and dynamic colors for parties—controlled via a single robust system.

Beyond Warm White

While 3000K Warm White is the classic choice for landscapes, flexibility sells.

• Dual Color (CCT)⁷: We offer tunable white strips (e.g., 2700K to 6500K). This allows the client to change the mood from a cozy "firelight" warm to a crisp "moonlight" cool white depending on the season.
• RGB + IC⁸: For a truly unique look, our "magic color chasing lights" (RGB+IC) allow for flowing water effects along a path. This is powered by 5050 chips with integrated circuits.
• Customization: As a factory, we support unique requests. If your project needs a specific board width (like 10mm or 12mm) to fit a specific stone channel, or a custom cut length, we adjust the production line.

Technical Note for Installers:
When using color-changing strips outdoors, the controller must also be protected. Ensure you source waterproof connectors and house the receiver in a weatherproof box, as the strip itself (IP68) is tough, but the connection points are vulnerable.

Conclusion

Great landscape lighting transforms a property. By adhering to IP68 Solid Extrusion for waterproofing, utilizing COB technology for a dot-free aesthetic, and choosing the right voltage (24V/48V) for the run length, you build a system that lasts. Stop replacing cheap lights and start installing permanent solutions.
