Restaurant and Bar LED Rope Lighting Design Ideas: Is Your Ambience Killing Your Profits?

It is the oldest rule in the hospitality playbook: people don’t just pay for the food; they pay for the feeling. I have walked into countless bars where the lighting was either an interrogation room white or a murky, impossible-to-navigate gloom. As a contractor or a lighting designer, you know that bad lighting sends high-paying customers straight out the door. But fixing this shouldn’t mean bankrupting your client with fragile neon or energy-sucking incandescent bulbs.

To transform a hospitality venue into a high-profit destination, you must deploy the next generation of COB (Chip-on-Board) LED Rope Lights. By integrating ultra-warm 1800K-3000K strips for intimacy, vibrant RGB+IC "Magic Color" systems for bar energy, and precision-cut silicone neon for architectural contours, you create a dynamic, durable environment that shifts from dinner service to dance floor at the touch of a button.

In my years of manufacturing for the US market, I have seen top-tier designers use our lights not just as decoration, but as a tool to control customer flow and mood. Let’s look at the specific design applications that will make your next restaurant project a portfolio highlight.

Designing for hospitality is a balancing act between aesthetics and durability. Restaurants are harsh environments—grease, spilled drinks, and constant cleaning chemicals are the norm. Standard residential tape light won’t survive six months. You need industrial-grade solutions that look delicate but act tough.

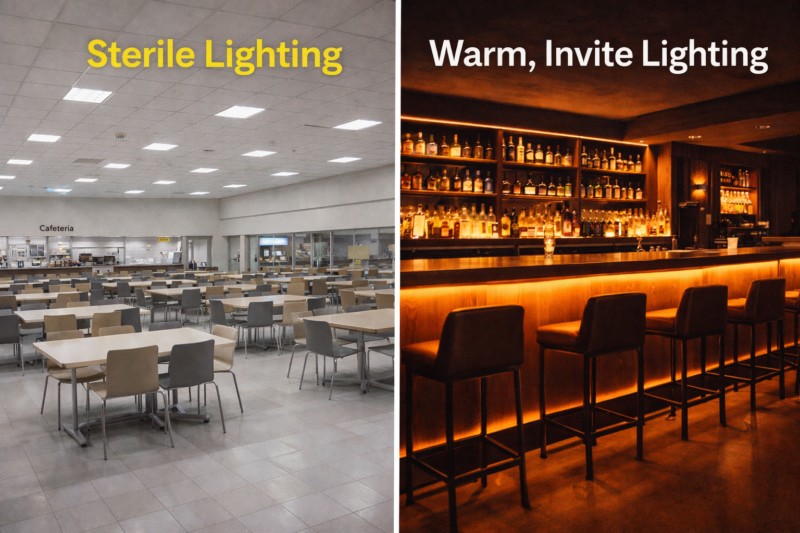

How Do You Create Intimacy Without Darkness?

The biggest complaint diners have is that a restaurant is "too dark to read the menu" or "too bright to feel private." The sweet spot is "Warm Dimming."

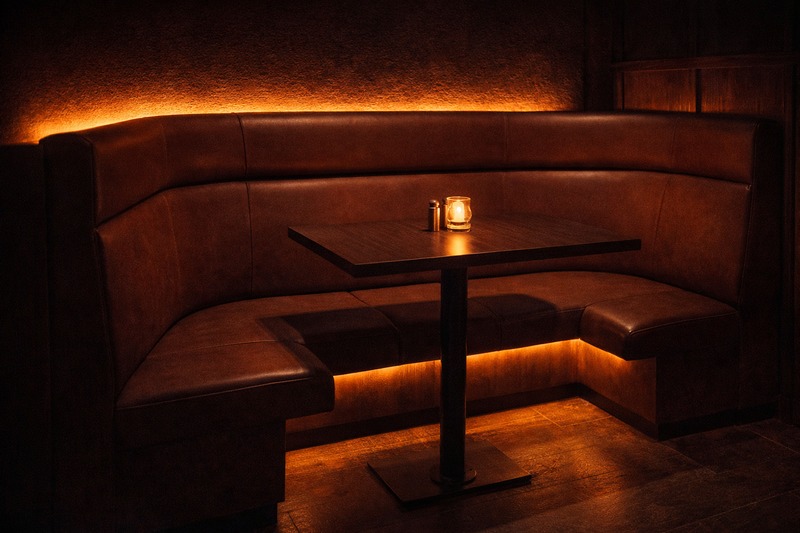

You must specify High-CRI COB strips in the 1800K to 2700K range. These specific color temperatures mimic the nostalgic glow of candlelight and dimmed tungsten without the heat. By using our "No Dark Area" COB technology, you can install these strips in low-profile coves or under banquettes to provide substantial ambient light that feels soft, indirect, and incredibly flattering to skin tones.

The Science of "Cozy" (CCT & CRI)

In the hospitality business, "mood" is measurable physics. Lighting isn’t just about visibility; it’s about psychology.

The Golden Range (1800K – 2700K):
Most generic LEDs start at 3000K or 4000K. This is fine for an office, but it kills the vibe in a steakhouse or a lounge.

• 1800K: This is the color of a candle flame. We manufacture specific COB strips in this ultra-warm range. It triggers a relaxation response in the brain.
• 2200K – 2700K: This mimics vintage Edison bulbs. It effectively illuminates the food without washing out the richness of the surroundings.
• Application Tip: Use 24V COB strips¹ for long cove runs near the ceiling. The higher voltage ensures the light color stays consistent (no pink shift) from one end of the dining room to the other.

CRI (Color Rendering Index²) Matters:
Have you ever seen a salad look grey? That’s low CRI.

• For food service, you need CRI > 90 (Ra90). Our COB strips are rated at Ra90.
• High CRI ensures that the red of the wine, the green of the garnish, and the brown of the crust look vibrant and appetizing. If you use cheap Ra70 strips, the food looks cheap, and the customer perceives lower value.

The Uniformity Factor:
Under-cabinet or under-bar lighting often reveals the "dots" of standard LED strips on the polished floor. This looks messy.

• Our COB strips (up to 480 or 512 LEDs/m) create a continuous, solid line of light. Even on a shiny marble floor, the reflection is a clean streak, not a dotted line. This subtle detail screams "high-end."

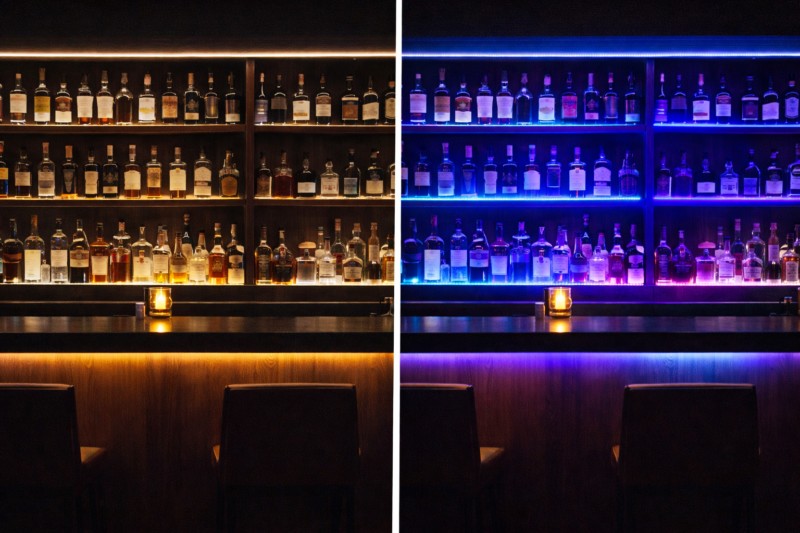

How Can "Magic Color" Transform a Bar from Day to Night?

A venue often has two personalities: a relaxed lunch spot in the afternoon and a high-energy bar at night. Static lighting cannot support both.

Implement "Magic Color" (RGB+IC) chasing capabilities for the bar area. By installing addressable digital strips behind the bottle display or under the bar counter, you can program slow, subtle color shifts for the evening meal, and switch to dynamic, high-energy "meteor" or "breathing" patterns when the DJ starts, effectively changing the venue’s purpose without changing the hardware.

The Versatility of Digital Control

The modern bar needs to be a chameleon. "Magic Color" (addressable RGB) is the technology that makes this possible.

What is RGB+IC³?
Standard RGB strips change the entire roll to one color. RGB+IC (Integrated Circuit) means we put a chip inside the strip that controls small groups of LEDs independently.

• The "Flow" Effect: This allows for gradients. You can have a blue light that slowly fades into teal and then purple, moving physically down the bar top.
• Music Sync: These systems can be tied to sound controllers. The beat of the music can trigger pulses of light.

Efficiency in Motion:
Surprisingly, dynamic lighting can be energy efficient.

• In a "Meteor" or "Chasing" mode, many of the LEDs are off at any given moment.
• Our 5V or 12V Magic Color strips⁴ typically consume between 6W and 16W per meter. Because different colors operate at different voltages (Red is lower), mixing colors dynamically reduces the thermal load compared to running full static white all night.

Application Logic:

• Under-Bar: Use IP65 or IP67 silicone-coated strips. Drinks will create splashes. The silicone coating protects the IC chips.
• Shelving: Use our 10mm PCB width strips routed into the shelves. The light shines up through the liquor bottles, making them glow. Because COB/Magic strips have no dark areas, the bottles look evenly lit, not spotty.

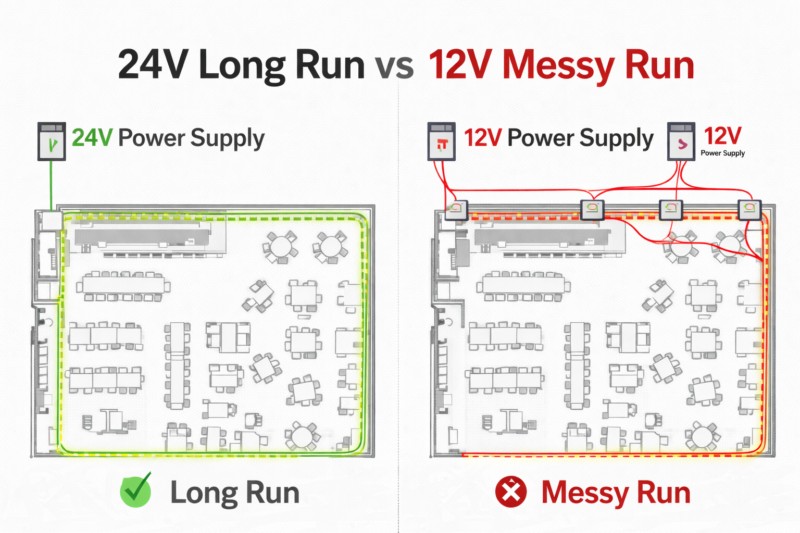

Why Is 24V the Only Choice for Large Venues?

Restaurants are large. Running 12V wires everywhere results in dim lighting at the far ends of the room and requires ugly, bulky power supplies hidden in every corner.

Standardize on 24V Constant Voltage or Constant Current systems for all architectural runs. 24V systems allow for run lengths up to 10 meters (33 feet) with a single power feed, ensuring uniform brightness across long banquettes and ceiling coves while reducing the labor cost of wiring multiple power injection points.

The Voltage Drop Reality

In commercial construction, labor and copper wire are expensive. 24V systems⁵ save both.

The Physics of Dimming:
"Voltage Drop" happens when electricity travels through a wire; it loses pressure (volts).

• 12V System: If you run 10 meters of 12V strip, the end might only receive 9V. The light will look yellow and dim compared to the start.
• 24V System: By doubling the pressure, the current (amps) is halved for the same power. Lower amps means less resistance loss.
• Result: You can run 10 meters of our 24V COB strip continuously.

The Constant Current Advantage:
For truly massive halls, we offer Constant Current (CC) strips.

• These contain tiny transistors on the PCB that regulate current at every LED group.
• Result: You can run 15 to 20 meters from one power source with zero visible brightness loss.
• Why it matters: In a restaurant cove that spans 50 feet around a dining room, you might only need one driver in the electrical closet, rather than hiding five divers in the ceiling (which is a maintenance nightmare).

Safety and Compliance:
While 24V is powerful, it is still "Low Voltage" (Class 2).

• This eliminates the shock hazard of 120V line-voltage rope lights.
• It simplifies inspections and allows for the use of safer, double-sided copper PCBs that dissipate heat better than high-voltage alternatives.

How Do You Handle Wet Areas (Kitchens and Bars)?

Health codes are strict. You cannot have exposed electronics near food prep areas or where steam/water is present.

Utilize IP67 (Hollow Extrusion) or IP68 (Solid Silicone Injection) rated LED strips. Unlike cheap epoxy coatings that crack and yellow near heat, silicone extrusion withstands the grease, steam, and cleaning chemicals found in commercial kitchens and bars, ensuring the lights remain safe, compliant, and color-accurate for years.

Waterproofing Tier List

Not all "waterproof" lights are created equal. In a restaurant, "moisture" includes steam, cleaners, and beverage acids.

The Material: Silicone vs. PU/Epoxy

• Old Tech (Epoxy): Turns yellow in 6 months. In a warm kitchen, it becomes brittle.
• Our Tech (Silicone): We use Integrated Silicone Extrusion.
  • UV Stability: It won’t yellow, so your "Clean White" kitchen light stays white.
  • Chemical Resistance: It stands up to bleach and degreasers better than standard plastics.

The Ratings Explained:

• IP20 (Non-Waterproof): Only use this inside dry aluminum channels in the dining room ceiling.
• IP65 (Spray Coated): Good for under-bar counters where a spilled drink might happen.
• IP67 (Hollow Silicone Tube): Best for outdoor patios or eaves. The air gap allows for some thermal expansion.

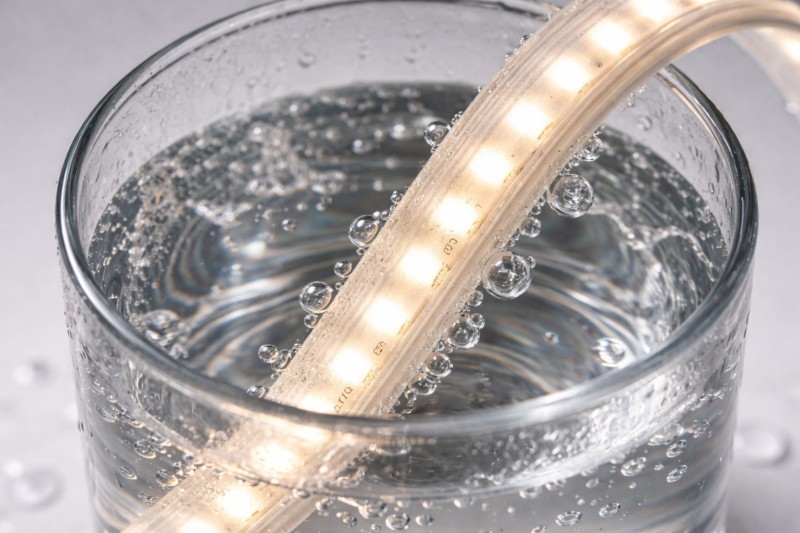

• IP68 (Solid Injection): The Ultimate Choice. We inject liquid silicone into the tube, fully encasing the LEDs.
  • Kitchen Use: Install these under metal shelves in the pass-through window. They can be wiped down with a wet rag during cleanup without fear of shock specifically.
  • Outdoor Use: Perfect for landscape lighting around the restaurant patio, even in snow or rain.

Can You Use LED Tape for Custom Signage?

Neon signs are iconic for bars, but glass neon is expensive, fragile, and dangerous (high voltage).

Replace glass neon with 12V "Short-Cut" COB Neon Flex. With cutting intervals as small as 10mm-25mm and a bending radius of just 15mm, you can fabricate custom "Open" signs, bathroom indicators, or branded wall art that looks exactly like neon but consumes 70% less power and won’t shatter if a customer bumps into it.

Precision Fabrication

Custom branding is huge for Instagram-worthy spots in restaurants.

The Cutting Unit:
To make a letter like "S" or "B", you need to cut the strip precisely.

• Standard strips cut every 100mm (4 inches). This is too clumsy for lettering.
• Our 12V COB Neon⁶ allows cutting every 25mm (1 inch). This precision lets you terminate the light exactly at the end of a letter stroke.

The "Nano" Advantage:
For very fine detail, we offer 4mm PCB width⁷ strips.

• These fit into thin routed channels in acrylic or wood.
• When off, they are barely visible. When on, they provide a crisp line of light.

Durability:

• Glass neon runs on 15,000 Volts. If it breaks, it’s a hazard.
• LED Neon runs on 12V or 24V. It is cool to the touch. You can place these signs right next to a booth where customers are sitting without liability concerns.

Conclusion

Lighting a restaurant or bar is about setting a stage. If you use cheap materials, the performance falls flat. By upgrading to 1800K-3000K High-CRI COB strips for that perfect candle-lit warmth, utilizing 24V systems for reliable infrastructure, and embracing IP68 Silicone for kitchen-grade durability, you provide your clients with a venue that looks expensive but operates efficiently. Don’t let bad lighting be the reason a guest never returns.
