Indoor Multicolor COB LED Strip Light
Dot-free RGB, RGBW, and RGBCW COB LED strip solutions for indoor decorative, architectural, retail, and smart lighting projects. Built for buyers who need vivid color effects without visible LED dots.
Why Buyers Choose Multicolor COB
The main advantage is not just color changing. It is smooth visual performance in premium decorative lighting where visible LED dots can ruin the final effect.
Continuous Color Line
COB packaging creates a smoother line of color than many traditional RGB strip options, especially in shallow aluminum profiles and visible decorative channels.
More Lighting Modes
RGB creates pure color effects, RGBW adds dedicated white light, and RGBCW extends that further with tunable white control for more scene flexibility.
Better for Premium Projects
Suitable for retail, hospitality, bars, clubs, display fixtures, gaming rooms, architectural mood lighting, and smart interior projects that need both color and finish quality.
Typical Indoor Applications
These models are usually selected for decorative and mood-focused projects where color uniformity matters as much as control effects.

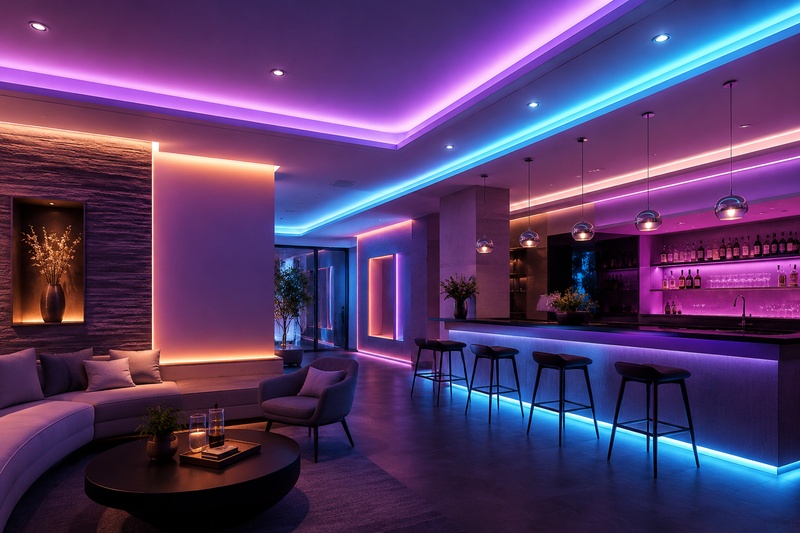

Architectural Accent Lighting
Used in ceiling coves, wall niches, under-counter channels, and feature lines where smooth RGB color output is more important than maximum lumen output.

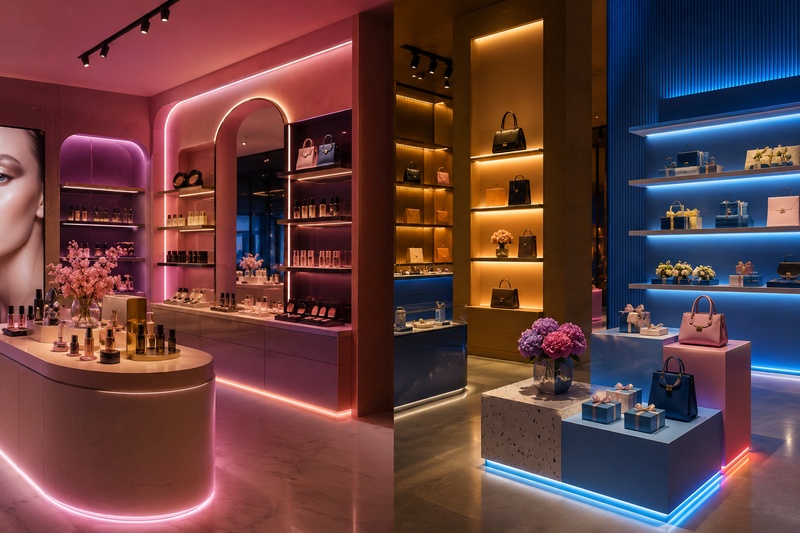

Retail & Display Lighting
Suitable for window displays, branded interiors, POP installations, and decorative shelving where dynamic color helps attract attention and shape brand mood.

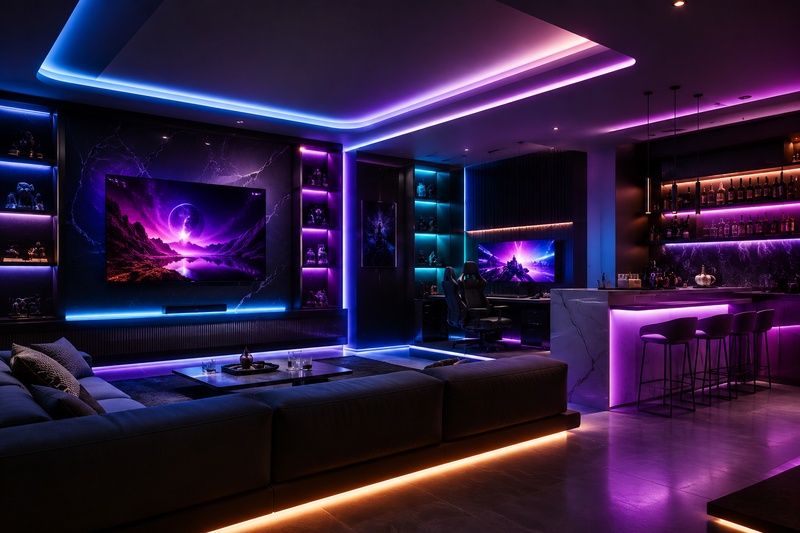

Entertainment & Smart Interior Lighting
Works well in bars, clubs, gaming rooms, themed interiors, and smart home projects where users want changing color scenes without visible diode dots.
How to Select the Right Multicolor Model
For RGB projects, the wrong choice usually comes from confusing effect lighting with practical white-light performance. These decisions should be made first.
Choose RGB, RGBW, or RGBCW by End Use
RGB is best for decorative color effects. RGBW is better when buyers also need functional white light. RGBCW is the premium option when adjustable white scenes are also required.
Check Controller Compatibility Early
Multicolor strips are controller-dependent products. Confirm output channels, protocol, current load, and control logic before approving samples or bulk orders.
Match Voltage to Run Length
5V is usually for compact or special low-voltage systems. 12V and 24V are more common for architectural installations. 24V often performs better on longer runs.
Separate Decorative Need from Main Lighting Need
Many buyers expect RGB strips to replace white task lighting. In practice, multicolor strips are usually selected for mood, accent, or display lighting rather than general illumination.
The most common mistake is choosing pure RGB when the project later also needs practical white light. If white-light use is likely, RGBW or RGBCW is usually the safer specification from the beginning.
RGB vs RGBW vs RGBCW
These three product types solve different project problems. Buyers should choose based on lighting intent, not just feature count.
| Factor | RGB | RGBW | RGBCW |
|---|---|---|---|
| Main value | Pure color effect | Color + dedicated white | Color + tunable white |
| Best fit | Mood / decorative lighting | Decorative + functional white | Premium smart scene control |
| Complexity | Lower | Medium | Higher |
| White light quality | Not dedicated | Dedicated white channel | Adjustable warm-to-cool white |
| Recommended buyer | Decorative / display buyers | Retail / hospitality buyers | Smart lighting / premium interior buyers |
Controller & System Considerations
Performance depends on strip + controller + power supply + installation channel working as one system.
What Must Match
- ✓Voltage must match between strip, controller, and power supply
- ✓Controller channel count must match RGB / RGBW / RGBCW type
- ✓Total load must stay within controller and power supply rating
- ✓Control protocol should match system needs — RF, DMX, SPI, WiFi, or app control
What Buyers Often Miss
- ⚠Pure RGB is not a strong replacement for comfortable white ambient lighting
- ⚠IC addressable versions require different control logic than standard RGB strips
- ⚠Long runs may still need power injection even when lighting effect appears smooth
- ⚠Aluminum profile and diffuser affect perceived color blending quality
Full Specifications
Current model matrix for indoor multicolor COB strip lighting, including RGB, RGBW, and RGBCW variants.
Common Specifications
| LED Type | COB |
| Color Modes | RGB / RGBW / RGBCW |
| Protection Rating | IP20 (Indoor) |
| Voltage Options | 5V / 12V / 24V DC |
| Roll Length | 5M or 10M / Roll |
| PCB Width Options | 5mm / 10mm / 12mm |
Environmental & Performance
| Working Temperature | -20℃ to +55℃ |
| Rated Lifespan | 30,000 hours |
| Lumen Range | 20–115 lm/W |
| Controller Required | Yes |
| Use Case | Decorative / accent / mood lighting |
| CRI | Up to >90 on RGBW/RGBCW white channel |
Important: RGB, RGBW, and RGBCW strips require matching controllers. Addressable IC versions require compatible IC control systems and cannot be treated like standard analog RGB strips.
Standard RGB vs IC Addressable RGB: Which One to Choose
| Factor | Standard RGB COB | IC Addressable RGB COB |
|---|---|---|
| Color control | All LEDs change color together | Each pixel or zone controlled independently |
| Visual effect | Solid color or uniform color change | Running lights, chasing, dynamic pixel effects |
| Controller type | Standard RGB controller (RF/WiFi/DMX) | IC-compatible controller (SPI/DMX512/proprietary) |
| Wiring | Simpler — 4 wires (R/G/B/+) | Requires data signal wire in addition |
| LED density | Higher (420–450 LEDs/M) | Lower (160 LEDs/M) — IC chip takes space |
| System cost | Lower | Higher — IC controller and signal planning needed |
| Best for | Architectural coves, retail, display, uniform mood lighting | Entertainment, gaming, themed interiors, dynamic effects |
Most decorative and architectural projects do not need addressable control. If the goal is uniform color or simple color-change effects, standard RGB is easier to wire, easier to control, and more cost-effective. Choose IC versions only when pixel-level or zone-level independent control is a genuine project requirement.
| Item No. | Voltage | Watts/M | Color | Lumen/W | CRI | LEDs/M | Working Temp | Lifespan | Board Width | Cut Length | M/Roll |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RGB COB Series — 5mm | |||||||||||
| RH-COB-5V-5-RGB | 5V DC | 10W | RGB | 20–60 | - | 450 | -20~55℃ | 30,000h | 5mm | 12.5mm | 5M |
| RH-COB-12V-5-RGB | 12V DC | 10W | RGB | 20–60 | - | 450 | -20~55℃ | 30,000h | 5mm | 12.5mm | 5M |
| RH-COB-5V-5-RGB-IC | 5V DC | 10W | RGB | 20–60 | - | 160 | -20~55℃ | 30,000h | 5mm | 12.5mm | 10M |
| RH-COB-12V-5-RGB-IC | 12V DC | 10W | RGB | 20–60 | - | 160 | -20~55℃ | 30,000h | 5mm | 12.5mm | 10M |
| RGB COB Series — 10mm | |||||||||||
| RH-COB-12V-10-RGB | 12V DC | 15W | RGB | 20–60 | - | 420 | -20~55℃ | 30,000h | 10mm | 20.83mm | 10M |
| RH-COB-24V-10-RGB | 24V DC | 15W | RGB | 20–60 | - | 420 | -20~55℃ | 30,000h | 10mm | 50mm | 10M |
| RGBW COB Series — 12mm | |||||||||||
| RH-COB-12V-12-RGBW | 12V DC | 15+10W | RGB+3000K | 20–115 | - | 420 | -20~55℃ | 30,000h | 12mm | 20.83mm | 10M |
| RH-COB-24V-12-RGBW | 24V DC | 15+10W | RGB+3000K | 20–115 | >90 | 672 | -20~55℃ | 30,000h | 12mm | 41.64mm | 10M |
| RGBCW COB Series — 12mm | |||||||||||
| RH-COB-12V-12-RGBCW | 12V DC | 15+10W | RGB+27-65K | 20–115 | >90 | 630 | -20~55℃ | 30,000h | 12mm | 23.81mm | 10M |
| RH-COB-24V-12-RGBCW | 24V DC | 15+10W | RGB+27-65K | 20–115 | >90 | 630 | -20~55℃ | 30,000h | 12mm | 55.5mm | 10M |
Installation & Procurement Notes
Indoor Use Only
This page covers IP20 indoor-use multicolor COB models. Outdoor, waterproof, or silicone-neon solutions should be selected separately.
Use Proper Profile & Diffuser
Aluminum channel and diffuser choice affect heat dissipation, color blend, and final appearance. This matters more in visible installations.
Sample Before Volume Order
For retail, hospitality, display, and smart-lighting projects, we strongly recommend testing the strip with the actual controller and channel before bulk purchase.
FAQ
What is the difference between RGB COB and standard RGB SMD strip?+
When should buyers choose RGBW instead of pure RGB?+
What is the biggest buying risk with multicolor strips?+
Are addressable IC versions suitable for all projects?+
Need Help Selecting the Right Multicolor COB Strip?
Tell us your color mode, voltage, project type, controller preference, and installation width. We can help you choose the right RGB, RGBW, or RGBCW model before sampling or bulk order.
Send an Inquiry
