3D LED Neon Flex

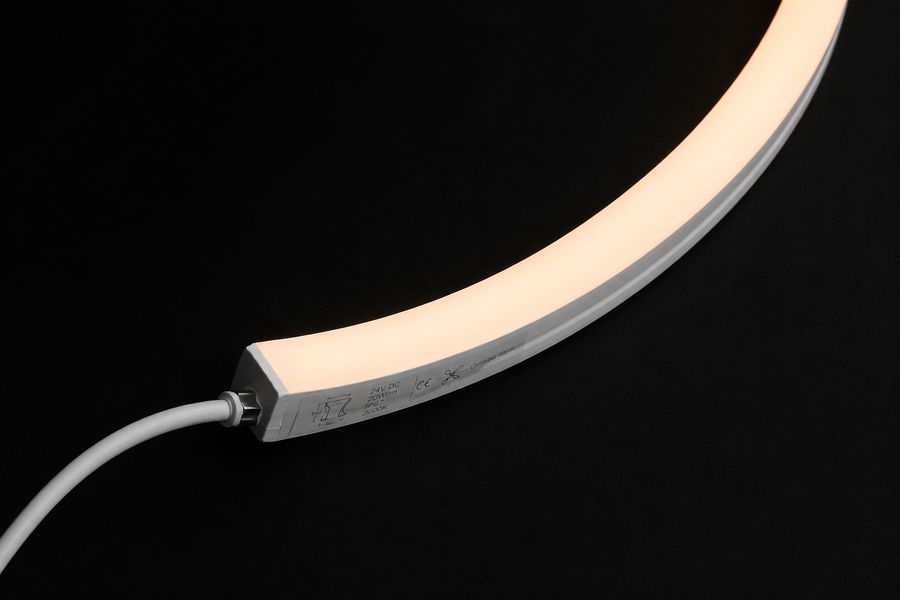

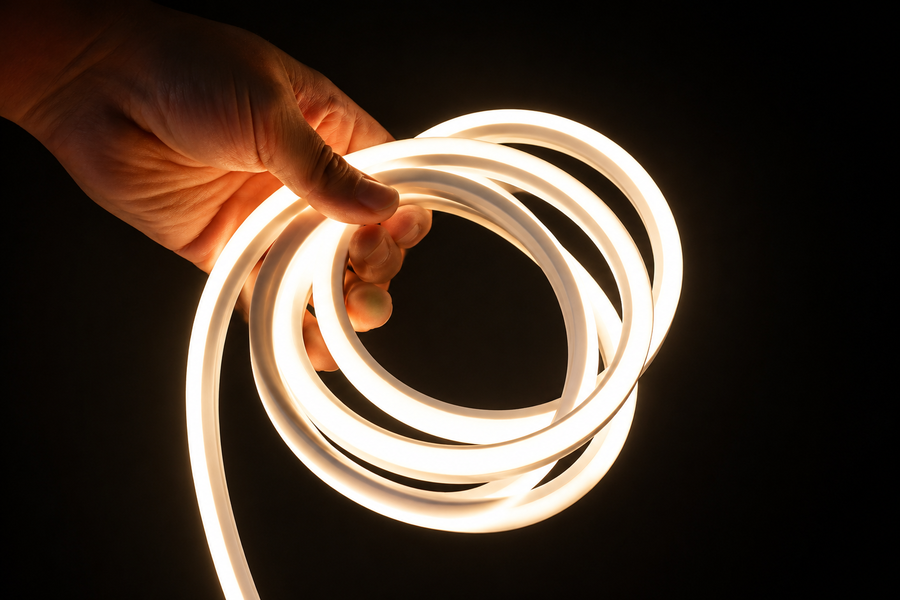

Silicone neon flex that bends in all directions — both horizontally and sideways in a single profile. Suitable for complex shapes, curved signage, and multi-plane installations where top-bend-only or side-bend-only profiles cannot follow the path. IP67, DC 24V, CRI >90.
3D vs Top Bend vs Side Bend
The key difference is bending flexibility. Choose based on how complex your installation path is.
3D — This Series

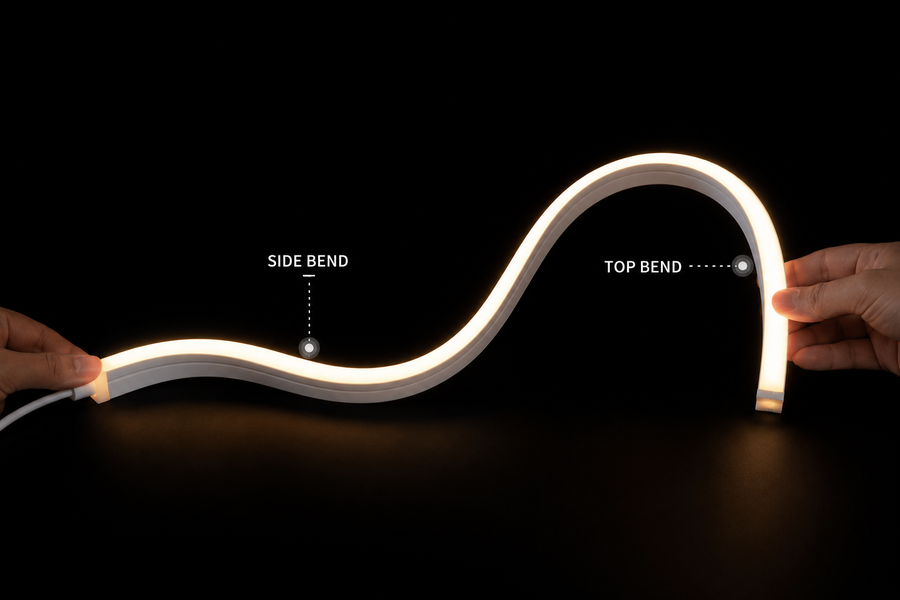

Bends both horizontally and sideways. A single profile can follow a path that changes direction in multiple planes — ideal for complex shapes, freeform neon outlines, and installations where top-only or side-only profiles would need to be cut and rejoined.
Top Bend
Bends horizontally only. Light surface faces upward. For ceiling coves, pool surrounds, façade outlines, and architectural contour runs where the path stays in one plane. IP68, IK10, 50,000 hrs.
Side Bend
Bends sideways only. Light surface faces upward. For channel letters, logo outlines, and curved signage where the strip bends left and right along a flat plane. 5 profile sizes, IP67.
Choose Your Profile
All profiles share DC 24V, IP67, silicone body, and 30,000 hour LED lifespan. Select based on visual scale and application.
Smallest profile. Tight multi-directional bends, fine detail shapes, compact frames. Single Color only.
Medium profile. General curved signage, decorative shapes, retail display. Single Color only.
Largest profile. Higher output, longer max run. Supports SC, CCT Tunable, and RGB. Best for larger freeform shapes and hospitality display.
Full Specifications
All models: DC 24V · IP67 · Silicone · CRI >90 (white) · Working temp -20°C to +55°C · 30,000 hrs. Lumen values are approximate (±10%).
| Item No. | Profile | Type | CCT / Color | W/m | lm/W | ~lm/m | CRI | Cut (mm) | Max Run |
|---|---|---|---|---|---|---|---|---|---|
| Profile 1010 — 10 × 10 mm | |||||||||
| RH-NF-3D-1010-SC | 10×10mm | Single Color | 2000–6500K / Red / Blue / Green / Yellow / Pink / Purple | 8 | 55 | ~440 | >90 (white) | 50 | 5 M |
| Profile 1212 — 12 × 12 mm | |||||||||
| RH-NF-3D-1212-SC | 12×12mm | Single Color | 2000–6500K / Red / Blue / Green / Yellow / Pink / Purple | 8 | 55 | ~440 | >90 (white) | 50 | 5 M |

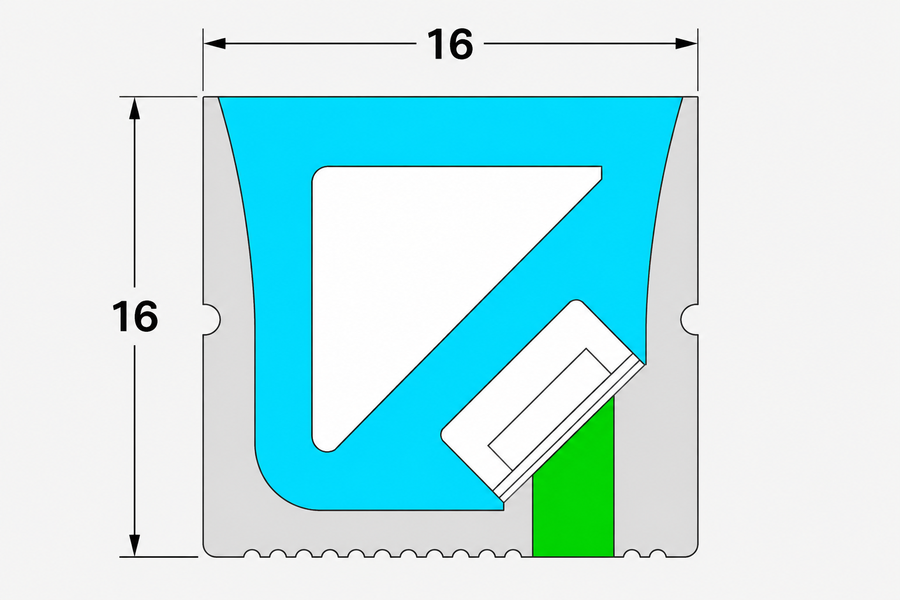

| Profile 1616 — 16 × 16 mm | |||||||||
| RH-NF-3D-1616-SC | 16×16mm | Single Color | 2000–6500K / Red / Blue / Green / Yellow / Pink / Purple | 10 | 55 | ~550 | >90 (white) | 50 | 10 M |
| RH-NF-3D-1616-CCT | 16×16mm | CCT Tunable | 2700–6500K (Dimmable) | 14 | 35 | ~490 | >90 | 62.5 | 10 M |
| RH-NF-3D-1616-RGB | 16×16mm | RGB | RGB (Dimmable) | 14 | 10 | ~140 | — | 62.5 | 10 M |
| * Lumen values are approximate (lm/W × W/m, ±10%). White CCT models apply CRI >90; color variants do not have a CRI rating. Max run is for single-end power supply. For longer runs, use parallel power feed. Contact us for full datasheet. | |||||||||
Common Specifications
Shared across the full RH-NF-3D range.
| Voltage | DC 24V |
| IP Rating | IP67 |
| Material | Silicone |
| Bending Direction | Top bend + Side bend (multi-directional) |
| Dimming | PWM / 0–10V compatible (CCT & RGB) |
| Working Temperature | -20°C to +55°C |
| LED Lifespan | 30,000 hours |
| SC Cutting Unit | 50 mm |
| CCT / RGB Cutting Unit | 62.5 mm |
| Power Supply | DC 24V constant voltage · 20% headroom recommended |
Installation Notes
⚠️ Before Installing
- •Use DC 24V constant voltage power supply only. Leave at least 20% power headroom above calculated load.
- •Single Color models: cut every 50mm at designated cut marks only. CCT and RGB models: cut every 62.5mm.
- •Do not exceed maximum run length for single-end power supply. For longer runs, use parallel injection or mid-point power feed.
- •IP67 rating applies to the silicone body. Ensure connectors and end caps are properly sealed for outdoor or wet-area use.
- •CCT and RGB models require a compatible 24V controller (2-channel CCT or 3-channel RGB). Verify before ordering.
- •Avoid contact with solvents, acid-based adhesives, or oxidising chemicals that may degrade the silicone body.
- •In newly decorated spaces, allow adequate ventilation before installation. Methanol or benzene vapour can cause silicone yellowing.
Need Help Choosing the Right 3D Neon Flex?
Share your installation path, profile size requirement, color type, total run length, and bending requirements. Our team will confirm the right model and provide detailed specs and pricing.
