LED Binning and MacAdam Ellipses: How to Avoid Color Inconsistency in Large Projects

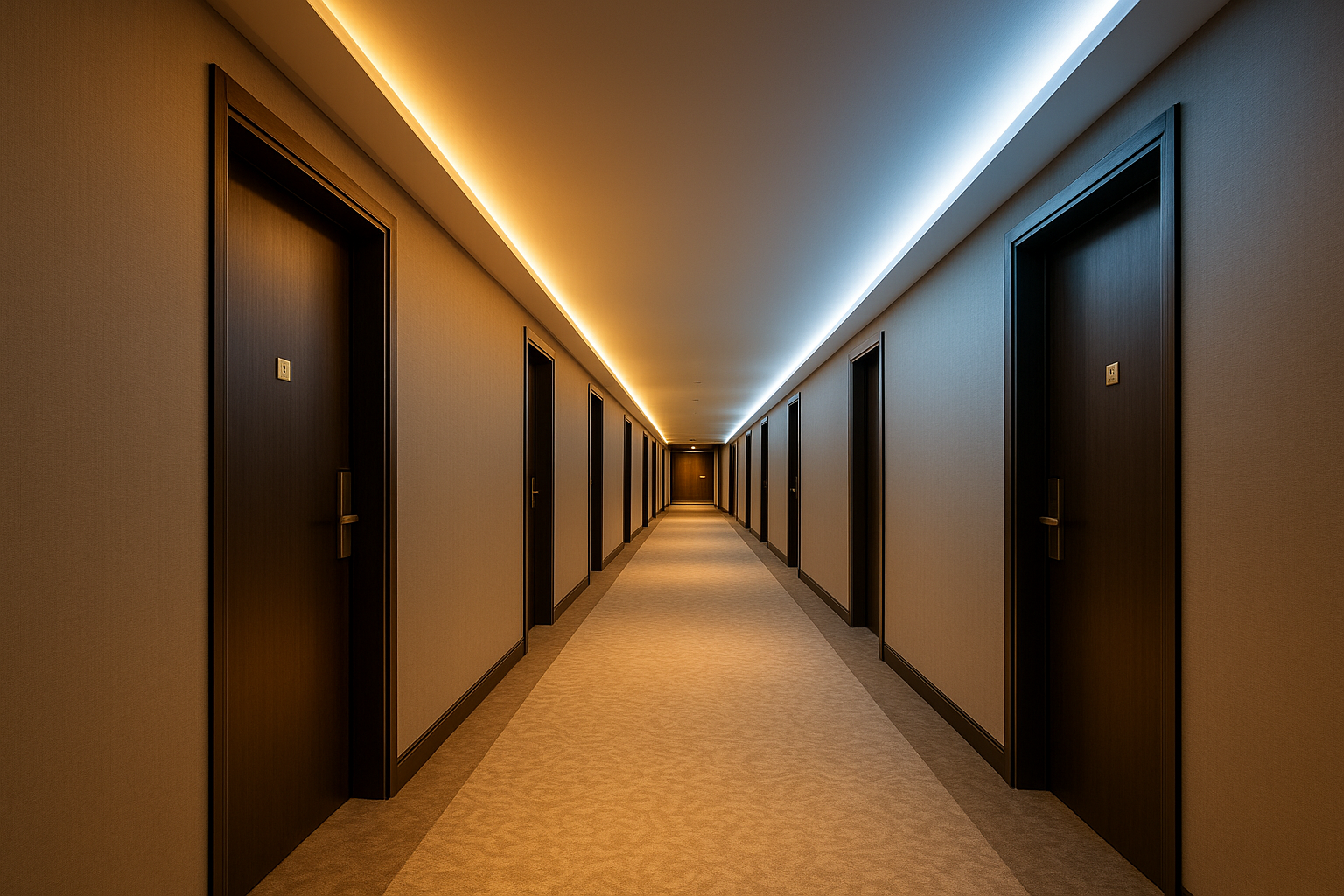

Color inconsistency is one of the fastest ways to make a large LED strip lighting project look poorly managed, even when the installation itself is clean. A ceiling cove that shifts slightly greener from one room to the next, or a façade line that changes tone between reels, immediately raises questions from consultants, owners, and end users.

In most cases, the problem is not that the LEDs are defective. The real issue is that color consistency was not controlled tightly enough during specification, procurement, or batch management. For contractors, specifiers, installers, and project buyers, that means understanding two terms that matter far more than many procurement teams realize: LED binning and MacAdam ellipses.

This article explains what those terms mean in practical project language, how they affect large installations, and what steps buyers should take to avoid visible color variation across a job.

---

Why Color Consistency Becomes a Major Problem in Large LED Strip Projects

In a small single-room installation, slight color differences between reels may go unnoticed. In large projects, that margin disappears quickly. Long corridors, hotel floors, retail chains, office fit-outs, and façade outlines create multiple viewing angles and repeated lighting lines. Even a small color shift becomes obvious when adjacent runs are compared directly.

Common triggers include:

• mixing reels from different production batches
• ordering replenishment material after the main production run
• using products with loose chromaticity control
• combining strips from different suppliers under the same nominal CCT
• replacing damaged sections during installation without checking bin match

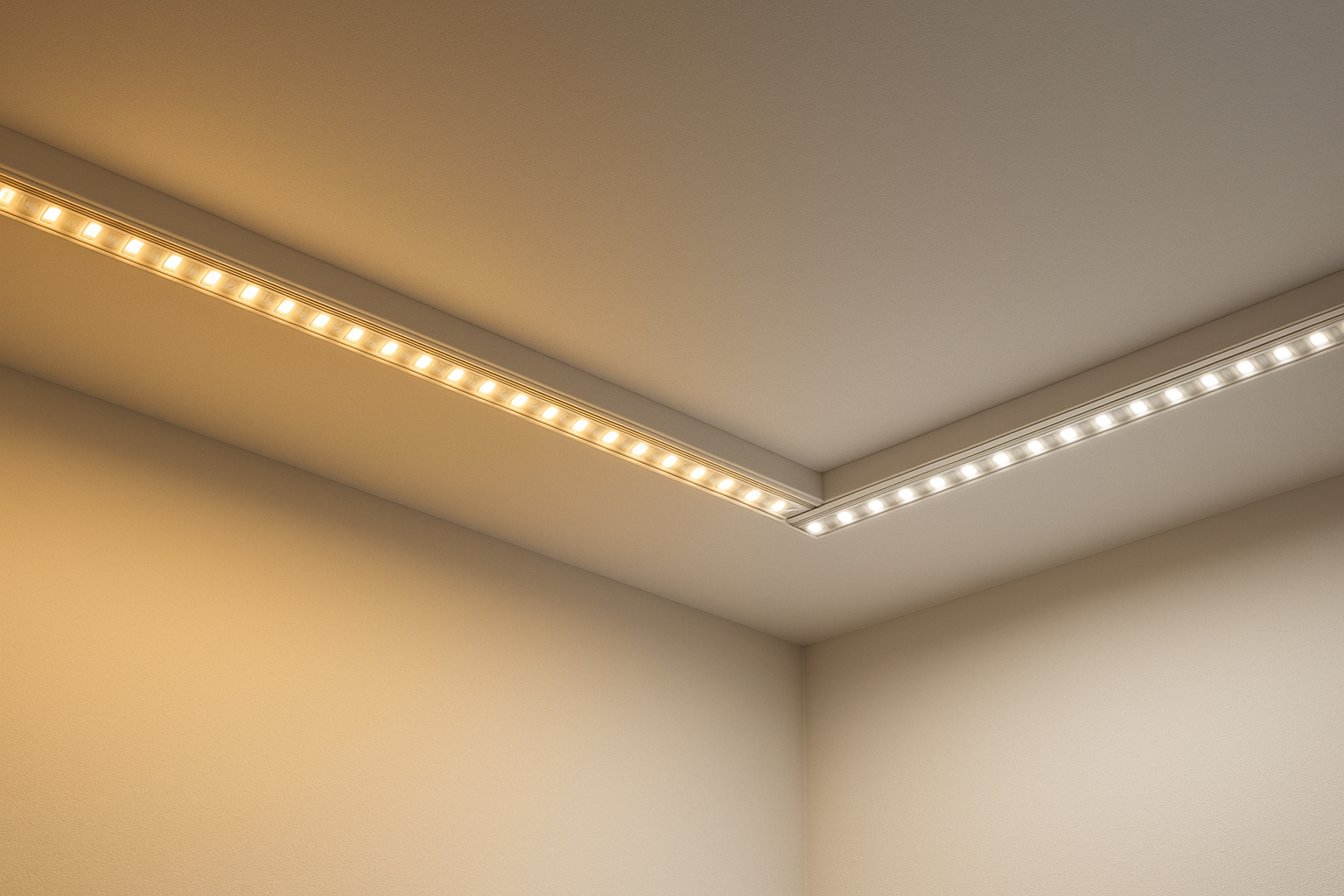

This is why large projects cannot rely on labels like 3000K or 4000K alone. Two strips may both be sold as 3000K and still look visibly different once installed side by side.

---

What LED Binning Actually Means for Commercial Buyers

LED binning is the sorting process manufacturers use after LED chips are produced. Because semiconductor manufacturing always creates small variations, LEDs are grouped into bins according to measurable performance characteristics such as:

• luminous flux
• forward voltage
• dominant wavelength or chromaticity
• correlated color temperature range

For white LED strip lighting, the most important binning issue in most architectural projects is color binning. That means how tightly the LED chips are grouped around a target white point.

For project buyers, the practical meaning is simple: the tighter the color bin, the more likely different reels will look visually consistent in the finished installation.

Loose binning may be acceptable for low-cost decorative applications. It is a bad idea for hospitality, retail, office, museum, or premium residential projects where continuous lines of light are directly visible.

A supplier that cannot clearly explain its color binning policy is usually asking the buyer to accept more visual risk than the quotation suggests.

---

How MacAdam Ellipses Help You Judge Visible Color Variation

MacAdam ellipses are a way of describing how much color variation the human eye can detect around a target chromaticity point. In LED lighting, they are often used to communicate how tightly color consistency is controlled.

In practical terms:

• 3-step MacAdam means tighter color control and lower visible variation
• 5-step MacAdam means moderate control and may be acceptable in some commercial applications
• 7-step MacAdam or above means the color spread is wider and visible differences are more likely

The lower the step count, the more consistent the light appearance across reels and batches.

For large architectural strip lighting projects, 3-step MacAdam is usually the safer specification, especially when the installation includes:

• long uninterrupted linear runs
• adjacent viewing of multiple luminaires or strip sections
• premium finishes and close client inspection
• repeat rollouts across multiple rooms or store locations

A 5-step product may still perform adequately in less demanding environments, but once you are dealing with prominent coves, shelf lighting, or façade lines, tighter control pays for itself by reducing disputes and replacement work.

---

Why 3000K vs 3000K Is Not Always the Same Color

This is one of the most common procurement misunderstandings. CCT is only a broad description of white light appearance. It does not guarantee two products share the same exact chromaticity point.

A strip listed as 3000K from Supplier A and a strip listed as 3000K from Supplier B may differ in:

• green or magenta shift
• amber or pink bias
• phosphor balance
• bin spread from reel to reel

Even within one supplier, two different production batches can sit at different points within the allowed CCT tolerance if bin control is not tight.

That is why professional buyers should ask for more than nominal CCT. They should request:

• binning information
• MacAdam step rating
• chromaticity tolerance statement
• confirmation that the full project will be supplied from the same production batch where possible

If the application is visually critical, sample approval should be based on actual project material, not on a generic previous reel or a sales sample from a different run.

---

Specification and Procurement Steps That Prevent Color Mismatch

Avoiding color inconsistency is mostly a planning discipline. The best time to solve it is before the purchase order is split across multiple shipments.

A practical control process for large projects includes the following:

1. Specify the chromaticity requirement clearly

Do not specify only wattage, IP rating, and CCT. Add a color consistency requirement such as 3-step MacAdam ellipse or equivalent supplier chromaticity tolerance.

2. Ask for batch reservation for the full project quantity

If the total project volume is known, ask the supplier to reserve or produce the quantity together so the project is fulfilled from the same batch as far as possible.

3. Avoid late top-up orders without bin confirmation

Additional reels ordered later are a common source of mismatch. If replenishment is unavoidable, request batch comparison and sample confirmation before shipment.

4. Label and manage reels on site

Installers should not open reels randomly across mixed cartons. Reels should be grouped and tracked by batch or supplier label so adjacent runs are installed from matched material.

5. Keep spare material from the original batch

For phased installations or future maintenance, retaining spare reels from the original supply is often much safer than assuming the same SKU will look identical months later.

These steps cost little compared with the labor and reputational cost of ripping out visible mismatched sections after client inspection.

---

Site-Level Installation Mistakes That Create Visible Variation

Not every color inconsistency complaint comes from the LED chip itself. Some are caused or exaggerated by installation conditions.

Common field issues include:

• placing different batches in directly adjacent lines
• using different diffuser types in the same visual zone
• varying profile depth or lens finish between areas
• mixing dimming systems that shift appearance at low levels
• replacing one damaged section without checking color match first
• combining horizontal and vertical viewing conditions without mockup review

It is also important to evaluate color consistency at the actual operating dim level. Some systems look acceptably matched at full output but reveal more visible variation when dimmed for hospitality or display use.

For that reason, mockups should be reviewed in realistic conditions, including dimming level, mounting profile, diffuser, and surrounding finishes.

---

A Practical Rule for Contractors, Specifiers, and Buyers

If the client will be able to compare one lighting line directly against another, treat color consistency as a core specification item, not a secondary quality preference.

A good working rule is:

• for premium visible architectural lighting, specify tight color binning and 3-step MacAdam control
• for large repeat projects, procure the full quantity together wherever possible
• for phased or multi-zone installations, keep documented batch records and spare reels
• for any critical application, approve a live mockup before full rollout

This is especially important in hotels, branded retail, offices, luxury residences, and façade applications, where even small differences can trigger rejection after installation.

---

FAQ

What is the best MacAdam ellipse rating for commercial LED strip projects?
For visually critical commercial and architectural projects, 3-step MacAdam is typically the safest choice. It provides tighter color consistency and reduces the risk of visible variation across long or adjacent runs.

Is 5-step MacAdam acceptable for LED strip lighting?
It can be acceptable in less demanding applications, especially where strips are not directly compared side by side. For premium hospitality, retail, and façade work, 3-step control is usually the better specification.

Does the same CCT guarantee the same color appearance?
No. Two products can both be labeled 3000K or 4000K and still show visible chromaticity differences. CCT is only part of the color specification.

Why do replacement reels sometimes look different from the original installation?
Because they may come from a different production batch or color bin. Without batch control and spare stock retention, later replacements often create visible mismatch.

Should installers care about batch labels?
Yes. In large projects, batch tracking helps prevent adjacent runs from being installed with unmatched reels. It is a practical quality-control step, not just a warehouse detail.

---

Conclusion

Color inconsistency in large LED strip projects is rarely a mystery. It usually comes from loose bin control, weak procurement discipline, or on-site mixing of unmatched material. Once the lighting is installed, the correction cost is far higher than the cost of specifying color consistency properly at the start.

For project teams, the lesson is straightforward. Do not buy LED strips based only on wattage, lumen output, and nominal CCT. Ask how the LEDs are binned, what MacAdam tolerance is used, whether the full order can be supplied from a controlled batch, and how replacement material will be managed later.

If the installation needs to look continuous, refined, and professionally executed, color consistency must be treated as part of the specification from day one.

---
